Aluminum tubular buspipe is an extruded tubular conductor used for power transmission, typically made from high-purity aluminum, offering excellent conductivity and lightweight properties. It plays a crucial role in high-current transmission and is suitable for various power equipment and distribution networks. Commonly used alloys include 6101, 1350, 6061, 6063, 1060, and 1070.
Mastar Metal, as a top aluminum tubular buspipe supplier, not only provides conventional alloy buspipes but also offers Tubular Rigid Aluminum Busbars capable of handling currents above 8000A, and heat-resistant aluminum buspipes with added rare earth elements (operating temperatures of 150℃-200℃). The specific type of electrical grade buspipe can be customized according to your project requirements. The applicable standards are as follows:
Aluminum industry standards: EN 755,ASTM B241,ASTM B 317M, IS:5082, IS:2673, GB/27676, GB/T 33228
Electrical field standards: IEC 60865, IEC 61597, IEC 61936, IEC 60439, IEC 62271
Mastar Metal's best-selling aluminum buspipes
-
6101 EC grade aluminum tubular buspipe- 6101 is a high-strength conductive material with excellent mechanical strength and corrosion resistance, offering conductivity up to 59% IACS. It is suitable for power transmission equipment that requires a certain level of strength.
-
1350 EC grade aluminum tubular buspipe
- 1350 is a high-conductivity aluminum tubular buspipe with a conductivity of up to 61.0% IACS, ideal for high-efficiency energy conversion in power transmission and distribution systems. Widely used as connecting conductors and overcurrent conductors.
-
6063 EC grade aluminum tubular buspipe
- 6063-T6 aluminum tubular buspipe is a lightweight, high-strength alternative for electrical conductors/busbars, offering excellent electrical conductivity and mechanical properties, suitable for power transmission and distribution systems.
-
6061 EC grade aluminum tubular buspipe
- 6061-T6 aluminum buspipe features excellent mechanical performance and corrosion resistance. With small amounts of copper or zinc added to enhance alloy strength, it is suitable for applications requiring high strength and moderate electrical conductivity.
-
1060/1070 EC grade aluminum buspipe
- 1060/1070 is a high-purity aluminum buspipe known for its excellent electrical and thermal conductivity as well as superior ductility. It plays a critical role in ensuring efficient operation of power transmission systems where high strength requirements are not essential.
-
Aluminum Rigid Conduit (ARC)
- Aluminum Rigid Conduit (ARC) is made from 6063 aluminum alloy, known for its natural corrosion resistance and excellent mechanical properties. It features threaded ends for easy cutting and bending. Widely used in highly corrosive environments, it protects circuits from corrosion damage.
-
6Z63 heat-resistant aluminum buspipe- 6Z63 (6063-ZR) high-strength heat-resistant aluminum Buspipe is enhanced with rare earths and zirconium, allowing safe operation at temperatures between 150°C and 200°C. It retains over 88% of its tensile strength at 250°C compared to room temperature, making it an ideal conductor for de-icing systems and high-capacity substations.
Specifications of aluminum tubular buspipe
Alloys: 6101, 1350, 6061, 6063, 1060, 1070
Temper: o, t4, t5, t6, t61, t63, t64, t65
Outer diameter: 60-450mm
Wall thickness: 3-15mm
Length: up to 15m
Production method: seamless extrusion, cold drawing
Surface requirement: smooth surface, free from cracks, wrinkles, inclusions, deformation, and twisting
Quality inspection: dimensional measurement, electrical conductivity testing, resistance testing, etc.
Standards: EN 755, ASTM B241, ASTM B 317M, IEC 60865, IEC 61597, IEC 61936, IEC 60439, IEC 62271
Technical requirements for Mastar Metal aluminum tubular buspipe
Mastar Metal aluminum tubular buspipes utilize advanced hot top casting, seamless pipe technology, and TMTP heat treatment techniques to ensure smooth surfaces, high dimensional accuracy, strong tensile strength, excellent resistance to discharge and deformation. This design enables efficient heat dissipation, low temperature rise, minimal loss, high conductivity, and high current-carrying capacity within electrical systems. Specific technical requirements include:
- Pipe ends must be flat and perpendicular to the axis.
- Length tolerance for busbars allowed is within a positive error range of +15mm to +25mm.
- Straightening spiral marks are permissible, provided they do not affect the outer diameter and are no deeper than 0.5mm.
- Bending radius of the busbars must satisfy m/L < 2.0 mm.
- Distance between the busbar and lining pipe should not exceed 0.5mm, ensuring installation requirements.
- Surface must be smooth, free from cracks, wrinkles, inclusions, deformations, and twists.
- Control of elastic modulus values to ensure deflection after installation falls within specified limits.
Why use tubular aluminum busbars?
Low skin effect and uniform current density distribution: tubular aluminum busbars have a lower skin effect coefficient and ensure uniform current density distribution, reducing power loss and enhancing transmission efficiency.
Reduced corona starting voltage: compared to solid aluminum conductors, tubular aluminum busbars can often lower the corona discharge starting voltage due to their shape and structural characteristics, improving system stability and safety.
Excellent heat dissipation: tubular aluminum busbars naturally provide excellent heat dissipation, resulting in lower temperature rise and contributing to stable system operation.
Flexible assembly methods: tubular aluminum busbars can be assembled using various methods such as connecting, bending, and welding, making them easier to install and saving space and costs.
Enhanced safety: with grounding shields along their entire length and a touch-safe outer surface, tubular aluminum busbars increase safety by reducing the risk of accidental electric shocks.
Advantages of aluminum tubular buspipes
Excellent shielding effect: tubular aluminum buspipes provide effective shielding against external interference, ensuring system stability.
Low loss, high capacity: aluminum tubular buspipes have low losses and can carry high currents, offering wide transmission bandwidth.
Strong durability: they are resistant to cracking or damage, capable of long-term stable operation, thus reducing maintenance costs and frequency.
Good corrosion resistance: aluminum tubular buspipes exhibit excellent corrosion resistance, leading to a long service life and reduced maintenance costs.
Good machinability: they accommodate various processing and customization needs, with excellent welding performance, simplifying installation and maintenance processes.
Compact size: occupying one-third of the space of traditional soft conductors, aluminum tubular buspipes save installation space.
Ideal applications of aluminum tubular buspipes
Power transmission and distribution systems: substations, power grid transmission lines, switchgear, and other power infrastructure.
Industrial and mechanical equipment: used in machine control cabinets, electrical panels, generators, transformers, and other industrial equipment for power transmission.
Transportation: electrified railways, urban rail transit systems, new energy charging stations, and electrical power and control systems for ships and aircraft.
Metallurgy and mining: industrial applications requiring high electrical currents, such as electrolytic cells, electric furnaces, and aluminum electrolysis production.

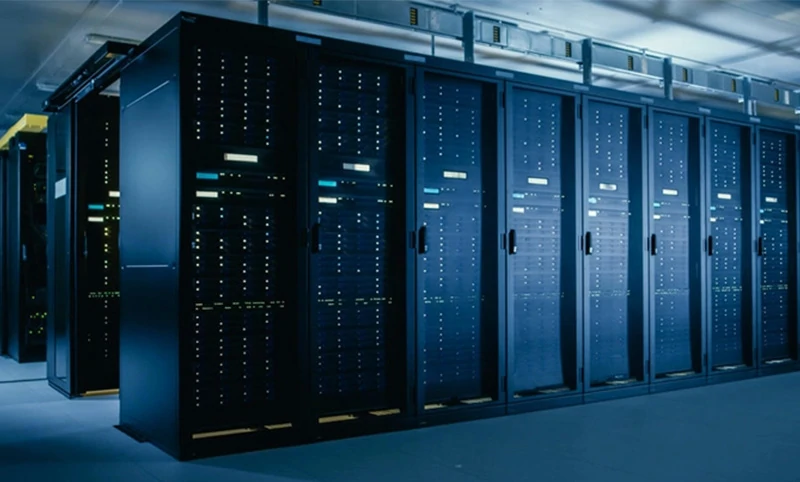

Data centers: servers, network equipment, distribution systems, cooling systems, and security systems in computing and storage facilities.
Ai computing: supercomputers, ai data centers, cloud computing platforms, iot, and edge computing systems relying on robust power transmission solutions.
Comparison between aluminum and copper buspipe
- 60% conductivity of copper (approx.).
- One-third the density of copper, lighter weight.
- Requires alloying and heat treatment for improved mechanical strength.
- Moderate thermal conductivity
- Economical and lower cost
- Ideal for long-distance power transmission and cost-sensitive distribution systems.
- 100% conductivity of copper.
- Higher density, heavier weight.
- Naturally superior mechanical strength and hardness.
- Excellent thermal conductivity, efficient heat dissipation.
- Higher cost and more expensive.
- Used in substations and high-current transmission systems requiring superior conductivity and strength.
Each type of buspipe material has its unique advantages and suitable applications. Choosing the right material should be based on specific project requirements and budget constraints. Quick Quote
Mastar Metal aluminum buspipe specification table
- Sch40 aluminum pipe dimension table
- Sch80 aluminum pipe dimension table
- Aluminum buspipe extrusion die table
| Nominal pipe size | OD | ID | WA | Weight Per Ft |
| 1/8 | 0.405 | 0.269 | 0.068 | 0.085 |
| 1/4 | 0.54 | 0.364 | 0.088 | 0.147 |
| 3/8 | 0.675 | 0.493 | 0.091 | 0.196 |
| 1/2 | 0.84 | 0.622 | 0.109 | 0.294 |
| 3/4 | 1.05 | 0.824 | 0.113 | 0.391 |
| 1 | 1.315 | 1.049 | 0.133 | 0.581 |
| 1 1/4 | 1.66 | 1.38 | 0.14 | 0.786 |
| 1 1/2 | 1.9 | 1.61 | 0.145 | 0.94 |
| 2 | 2.375 | 2.067 | 0.154 | 1.26 |
| 2 1/2 | 2.875 | 2.469 | 0.203 | 2.004 |
| 3 | 3.5 | 3.068 | 0.216 | 2.62 |
| 3 1/2 | 4 | 3.548 | 0.226 | 3.15 |
| 4 | 4.5 | 4.026 | 0.237 | 3.733 |
| 5 | 5.563 | 5.047 | 0.258 | 5.06 |
| 6 | 6.625 | 6.065 | 0.28 | 6.564 |
| 8 | 8.625 | 7.981 | 0.322 | 9.88 |
| 10 | 10.75 | 10.02 | 0.365 | 14 |
| 12 | 12.75 | 11.938 | 0.375 | 18.52 |
Click to see all
Click to collapse| Nominal pipe size | OD | ID | WT | Weight Per Ft |
| 1/8 | 0.405 | 0.215 | 0.095 | 0.109 |
| 1/4 | 0.54 | 0.302 | 0.119 | 0.185 |
| 3/8 | 0.675 | 0.423 | 0.126 | 0.256 |
| 1/2 | 0.84 | 0.546 | 0.147 | 0.376 |
| 3/4 | 1.05 | 0.742 | 0.154 | 0.51 |
| 1 | 1.315 | 0.957 | 0.179 | 0.751 |
| 1 1/4 | 1.66 | 1.278 | 0.191 | 1.037 |
| 1 1/2 | 1.9 | 1.5 | 0.2 | 1.256 |
| 2 | 2.375 | 1.939 | 0.218 | 1.737 |
| 2 1/2 | 2.875 | 2.323 | 0.276 | 2.65 |
| 3 | 3.5 | 2.9 | 0.3 | 3.574 |
| 3 1/2 | 4 | 3.364 | 0.318 | 4.326 |
| 4 | 4.5 | 3.826 | 0.337 | 5.183 |
| 5 | 5.563 | 4.813 | 0.375 | 7.188 |
| 6 | 6.625 | 5.761 | 0.432 | 9.884 |
| 8 | 8.625 | 7.625 | 0.5 | 15.01 |
| 10 | 10.75 | 9.562 | 0.594 | 22.29 |
| 12 | 12.75 | 11.374 | 0.688 | 30.66 |
Click to see all
| Alloy |
|
ID(mm) |
|
Line density (Kg/m) | Extrusion tonnage |
| 6063-T5 | 10 | 7 | 1.5 | 0.108 | 500T |
| 6063-T5 | 10 | 4.8 | 2.6 | 0.163 | 500T |
| 6063-T5 | 10 | 2.5 | 3.75 | 0.199 | 500T |
| 6063-T5 | 12.7 | 10.9 | 0.9 | 0.090 | 500T |
| 6061-T6 | 12.7 | 10.3 | 1.2 | 0.117 | 500T |
| 6061-T6511 | 12.7 | 9.75 | 1.47 | 0.141 | 500T |
| 6063-T6 | 12.7 | 9.65 | 1.52 | 0.144 | 500T |
| 6063-T6 | 12.7 | 9.45 | 1.63 | 0.153 | 500T |
| 6061-T6 | 15 | 13 | 1 | 0.119 | 500T |
| 6063-T5 | 16 | 10 | 3 | 0.331 | 660T |
| 6061-T6 | 16 | 4 | 6 | 0.509 | 660T |
| 6063-T1 | 17 | 14.8 | 1.1 | 0.148 | 500T |
| 6063 | 18 | 16 | 1 | 0.144 | 500T |
| 6063-T5 | 18 | 11.5 | 3.25 | 0.407 | 660T |
| 6063-T6 | 19 | 17.4 | 0.8 | 0.124 | 500T |
| 6063-T6 | 19 | 17.2 | 0.9 | 0.138 | 500T |
| 6061-F | 19 | 15.4 | 1.8 | 0.263 | 660T |
| 6063-T4 | 20 | 18 | 1 | 0.161 | 500T |
| 6063-T6 | 20 | 17 | 1.5 | 0.235 | 500T |
| 6063-T4 | 20 | 16 | 2 | 0.305 | 660T |
| 6063-T5 | 21 | 17.4 | 1.8 | 0.293 | 500T |
| 6063-T4 | 22 | 20 | 1 | 0.178 | 500T |
| 6063-T5 | 22 | 18 | 2 | 0.339 | 660T |
| 6061-T4 | 22 | 10 | 6 | 0.814 | 880T |
| 6063-T5 | 25 | 22.6 | 1.2 | 0.242 | 500T |
| 6063-T5 | 25 | 21.4 | 1.8 | 0.354 | 660T |
| 6063-T5 | 25 | 21 | 2 | 0.390 | 660T |
| 6061-T6 | 25 | 20.6 | 2.2 | 0.425 | 660T |
| 6063-T4 | 25 | 20.5 | 2.25 | 0.434 | 660T |
| 6063-T4 | 25 | 17 | 4 | 0.713 | 880T |
| 6061-T6 | 25 | 12 | 6.5 | 1.020 | 880T |
| 6101B-T6 | 25 | 9.35 | 7.825 | 1.140 | 1250T |
| 6063-T5 | 25.4 | 23.6 | 0.9 | 0.187 | 500T |
| 6061-T6 | 25.4 | 23 | 1.2 | 0.246 | 500T |
| 6063-T6 | 25.4 | 22.96 | 1.22 | 0.250 | 500T |
| 6061-T6 | 25.4 | 22.1 | 1.65 | 0.333 | 660T |
| 6063-T4 | 25.4 | 21.4 | 2 | 0.397 | 660T |
| 6061-T6 | 25.4 | 21.18 | 2.11 | 0.417 | 660T |
| 6061-T6511 | 25.4 | 19.05 | 3.18 | 0.599 | 880T |
| 6061-T6511 | 25.4 | 12.7 | 6.35 | 1.026 | 880T |
| 6063-T5 | 26 | 23 | 1.5 | 0.312 | 660T |
| 6063-T5 | 26 | 22 | 2 | 0.407 | 660T |
| 6063-T5 | 26 | 20 | 3 | 0.585 | 660T |
| 6063-F | 27 | 24.6 | 1.2 | 0.263 | 500T |
| 6063-F | 27 | 24.2 | 1.4 | 0.304 | 660T |
| 6063-F | 28 | 25.4 | 1.3 | 0.294 | 500T |
| 6063-T5 | 28 | 25 | 1.5 | 0.337 | 660T |
| 6063-T5 | 28 | 24 | 2 | 0.441 | 660T |
| 6063-T5 | 28 | 23 | 2.5 | 0.541 | 660T |
| 6063-T5 | 28 | 21 | 3.5 | 0.727 | 880T |
| 6061-T6 | 28 | 14 | 7 | 1.247 | 1250T |
| 6061-T6 | 29 | 15.5 | 6.75 | 1.274 | 1250T |
| 6063-T5 | 30 | 27 | 1.5 | 0.363 | 660T |
| 6063-T6 | 30 | 20 | 5 | 1.060 | 1250T |
| 6061-T6 | 30 | 17 | 6.5 | 1.296 | 1250T |
| 6061-T6 | 30 | 10 | 10 | 1.696 | 1250T |
| 6063-T6 | 32 | 30 | 1 | 0.263 | 500T |
| 6063-T5 | 32 | 29 | 1.5 | 0.388 | 660T |
| 6063-O | 32 | 28.2 | 1.9 | 0.485 | 880T |
| 6061-T6 | 32 | 26.4 | 2.8 | 0.694 | 880T |
| 6061-T6 | 33 | 29.9 | 1.55 | 0.413 | 660T |
| 6063-T5 | 33 | 28 | 2.5 | 0.647 | 880T |
| 6061-T6 | 34 | 26 | 4 | 1.018 | 880T |
| 6061-T6 | 35 | 28.5 | 3.25 | 0.875 | 880T |
| 6063-T5 | 36 | 33.4 | 1.3 | 0.383 | 660T |
| 6061-T6 | 36 | 10 | 10 | 2.536 | 2000T |
| 6063 T5 | 37 | 35 | 1 | 0.305 | 660T |
| 6061-T6 | 38 | 34.9 | 1.55 | 0.479 | 660T |
| 6063-O | 38 | 34.6 | 1.7 | 0.523 | 880T |
| 6061-T6 | 38 | 34.2 | 1.9 | 0.582 | 880T |
| 6063-T4 | 38 | 34 | 2 | 0.611 | 880T |
| 6061-T6 | 38 | 32 | 3 | 0.891 | 880T |
| 6063-T5 | 40 | 37.4 | 1.3 | 0.427 | 660T |
| 6061-T6 | 40 | 35 | 2.5 | 0.795 | 880T |
| 6063-T5 | 40 | 34.5 | 2.75 | 0.869 | 880T |
| 6061-T6 | 42 | 35 | 3.5 | 1.143 | 880T |
| 6063-T5 | 44 | 41.4 | 1.3 | 0.471 | 660T |
| 6063-T5 | 44 | 24 | 10 | 2.884 | 2000T |
| 6063-T5 | 46 | 40.4 | 2.8 | 1.026 | 880T |
| 6061-T6 | 46 | 34 | 6 | 2.036 | 1250T |
| 6063-T5 | 48 | 45.4 | 1.3 | 0.515 | 660T |
| 6061-T6 | 50 | 46.2 | 1.9 | 0.775 | 880T |
| 6061-T6 | 50 | 46 | 2 | 0.814 | 880T |
| 6061-T6 | 50 | 44.6 | 2.7 | 1.083 | 1250T |
| 6061-T6 | 50 | 44.5 | 2.75 | 1.102 | 1250T |
| 6063-T5 | 52 | 49.4 | 1.3 | 0.559 | 660T |
| 6063-T5 | 55 | 52 | 1.5 | 0.681 | 880T |
| 6063-T5 | 56 | 53.5 | 1.3 | 0.603 | 880T |
| 6063-T5 | 57 | 51 | 3 | 1.374 | 1250T |
| 6061-T6 | 57 | 49 | 4 | 1.798 | 1250T |
| 6063-T5 | 60 | 57.4 | 1.3 | 0.647 | 880T |
| 6061-T4 | 60 | 50 | 5 | 2.333 | 1800T |
| 6101B-T7 | 60 | 30 | 15 | 5.726 | 3150T |
| 6061-T4 | 62 | 54 | 4 | 1.968 | 1250T |
| 6063-T5 | 64 | 61.4 | 1.3 | 0.691 | 880T |
| 6063-T4 | 64 | 56 | 4 | 2.072 | 1800T |
| 6061-T6 | 65 | 62 | 1.5 | 0.808 | 880T |
| 6063-T5 | 68 | 65.4 | 1.3 | 0.736 | 880T |
| 6063-T5 |
|
65 | 2.5 | 1.431 | 1250T |
| 6063-T66 |
|
69 | 3.5 | 2.152 | 1250T |
| 6061-T6 |
|
66 | 5 | 3.011 | 2000T |
| 6101B-T7 | 80 | 50 | 15 | 8.270 | 3150T |
| 6063-T6 | 85 | 65 | 10 | 6.362 | 3150T |
| 6063-T66 | 89 | 80.9 | 4.05 | 2.918 | 1800T |
| 6061-T6 | 89 | 79 | 5 | 3.563 | 2750T |
| 6061-T6 | 89 | 77 | 6 | 4.224 | 2750T |
| 6063-T5 | 90 | 85 | 2.5 | 1.856 | 1250T |
| 6101-T6 | 90 | 78 |
|
4.275 | 3150T |
| 6063-T5 | 90 | 70 | 10 | 6.786 | 3600T |
| 6063-T6 | 90 | 65 | 12.5 | 8.217 | 3600T |
| 6063-T5 | 90 | 60 | 15 | 9.543 | 3600T |
| 6101B-T7 | 92 | 72 | 10 | 6.955 | 3600T |
| 6101B-T7 | 92 | 63 | 14.5 | 9.532 | 3150T |
| 6101B-T7 | 92 | 50 | 21 | 12.647 | 3150T |
| 6063-T6 | 93 | 73 | 10 | 7.040 | 3600T |
| 6063-T66 | 95 | 87 | 4 | 3.088 | 2000T |
| 6061-T6 | 100 | 88 | 6 | 4.784 | 2750T |
| 6101-T6 | 100 | 75 | 12.5 | 9.278 | 3600T |
| 6063-T5 | 100 | 60 | 20 | 13.572 | 3600T |
| 6063-T6 | 102 | 98.8 | 1.6 | 1.363 | 1800T |
| 6063-F | 102 | 98.4 | 1.8 | 1.530 | 1250T |
| 6063-T6 | 105 | 60 | 22.5 | 15.745 | 7500T |
| 6061-T4 | 108 | 92 | 8 | 6.786 | 3600T |
| 6063-T6 | 110 | 99 | 5.5 | 4.875 | 2750T |
| 6063-T5 | 110 | 98 | 6 | 5.293 | 3150T |
| 6101B-T6 | 110 | 79 | 15.5 | 12.424 | 5500T |
| 6101-T6 | 110 | 77 | 16.5 | 13.086 | 3600T |
| 6063-T66 | 114 | 105.5 | 4.25 | 3.956 | 2000T |
| 6061-T6 | 114 | 102 | 6 | 5.497 | 3150T |
| 6063-T6 | 114 | 100 | 7 | 6.353 | 3600T |
| 6063-T5 | 114 | 80 | 17 | 13.987 | 7500T |
| 6063-T6 | 115 | 95 | 10 | 8.906 | 3600T |
| 6063-T6 | 120 | 108 | 6 | 5.802 | 3150T |
| 6101-T6 | 120 | 90 | 15 | 13.360 | 3600T |
| 6101 | 120 | 86 | 17 | 14.853 | 5500T |
| 6063-T6 | 125 | 121 | 2 | 2.087 | 2000T |
| 6063-T6 | 125 | 116 | 4.5 | 4.600 | 2750T |
| 6063-T52 | 127 | 120.65 | 3.18 | 3.335 | 2000T |
| 6061-T6511 | 127 | 117.4496 | 4.78 | 4.951 | 3150T |
| 6061-T6511 | 127 | 114.3 | 6.35 | 6.496 | 3600T |
| 6061-T6511 | 127 | 101.6 | 12.7 | 12.313 | 7500T |
| 6061-T6511 | 127 | 76.2 | 25.4 | 21.890 | 7500T |
| 6063-T5 | 130 | 116 | 7 | 7.303 | 3600T |
| 6101B-T7 | 130 | 106 | 12 | 12.011 | 3150T |
| 6101-T6 | 130 | 100 | 15 | 14.632 | 7500T |
| 6063-T6 | 130 | 80 | 25 | 22.266 | 3150T |
| 6063-T5 | 134 | 120 | 7 | 7.541 | 3600T |
| 6063-T5 | 134 | 104 | 15 | 15.141 | 7500T |
| 6063-T6 | 140 | 132 | 4 | 4.614 | 2750T |
| 6063-T6 | 140 | 128 | 6 | 6.820 | 3600T |
| 6101 | 140 | 124 | 8 | 8.957 | 3600T |
| 6063 | 140 | 110 | 15 | 15.904 | 7500T |
| 6063-T6 | 145 | 100 | 22.5 | 23.379 | 7500T |
| 6063-T6 | 150 | 138 | 6 | 7.329 | 3600T |
| 6063-T5 | 150 | 125 | 12.5 | 14.579 | 7500T |
| 6063-T6 | 152 | 147 | 2.5 | 3.170 | 2750T |
| 6101 | 155 | 130 | 12.5 | 15.109 | 7500T |
| 6063 | 155 | 120 | 17.5 | 20.411 | 7500T |
| 6101B-T6 | 160 | 144 | 8 | 10.314 | 7500T |
| 6063-T5 | 160 | 140 | 10 | 12.723 | 5500T |
| 6063-T6 | 160 | 130 | 15 | 18.449 | 5500T |
| 6063-T4 | 165 | 158 | 3.5 | 4.795 | 3600T |
| 6061-T6 | 165 | 151 | 7 | 9.381 | 3600T |
| 6063-T6 | 168 | 155 | 6.5 | 8.904 | 3600T |
| 6101B | 170 | 156 | 7 | 9.678 | 3600T |
| 6063-T6 | 170 | 154 | 8 | 10.993 | 3600T |
| 6101B-T7 | 170 | 152 | 9 | 12.291 | 3600T |
| 6101B-T7 | 180 | 170 | 5 | 7.422 | 3150T |
| 6063-T6 | 180 | 150 | 15 | 20.994 | 7500T |
| 6061-T6 | 184 | 168 | 8 | 11.923 | 3600T |
| 6101B-T7 | 190 | 181 | 4.5 | 7.081 | 5500T |
| 6101B-T7 | 190 | 166 | 12 | 18.118 | 7500T |
| 6101-T6 | 192 | 168 | 12 | 18.322 | 5500T |
| 6101B-T7 | 194 | 170 | 12 | 18.525 | 7500T |
| 6063 | 200 | 192 | 4 | 6.650 | 3600T |
| 6101B-T6 | 200 | 184 | 8 | 13.029 | 5500T |
| 6101-T6 | 200 | 175 | 12.5 | 19.880 | 7500T |
| 6101-T6 | 200 | 167 | 16 | 24.972 | 7500T |
| 6101B-T7 | 200 | 160 | 20 | 30.536 | 7500T |
| 6061-T6 | 217 | 201 | 8 | 14.182 | 5500T |
| 6063-T6 | 220 | 190 | 15 | 26.083 | 5500T |
| 6061-T6 | 220 | 188 | 16 | 27.686 | 7500T |
| 6063 | 228 | 220 | 4 | 7.600 | 5500T |
| 6063-T6 | 228 | 208 | 10 | 18.491 | 5500T |
| 6101-T6 | 240 | 220 | 10 | 19.509 | 7500T |
| 6061-T6 | 240 | 208 | 16 | 30.401 | 7500T |
| 6063-T5 | 242 | 222 | 10 | 19.679 | 7500T |
| 6101B-T6 | 250 | 238 | 6 | 12.418 | 7500T |
| 6101B-T6 | 250 | 234 | 8 | 16.422 | 7500T |
| 6101B-T6 | 250 | 230 | 10 | 20.358 | 7500T |
| 6063 | 254 | 240 | 7 | 14.666 | 7500T |
| 6061-T6 | 254 | 222.25 | 15.875 | 32.065 | 7500T |
| 6061 T6511 | 255 | 207 | 24 | 47.026 | 12500T |
| 6101B-T7 | 260 | 232 | 14 | 29.213 | 7500T |
| 6063-T6 | 270 | 240 | 15 | 32.979 | 12500T |
| 6063 6005A | 280 | 274 | 3 | 7.049 | 7500T |
| 6061-T6 | 282 | 270 | 6 | 14.047 | 7500T |
| 6063-T4 | 296 | 282 | 7 | 17.160 | 7500T |
| 6061 T6511 | 298 | 255 | 21.5 | 50.425 | 12500T |
| 6063-T5 | 300 | 290 | 5 | 12.511 | 7500T |
| 6101 | 300 | 288 | 6 | 14.963 | 7500T |
| 6101B-T6 | 300 | 270 | 15 | 36.262 | 9000T |
| 6063-H112 | 302 | 290 | 6 | 15.065 | 7500T |
| 6063-T6 | 303 | 267 | 18 | 43.514 | 12500T |
| 6063-H112 | 306 | 290 | 8 | 20.222 | 7500T |
| 6061-T6 | 310 | 270 | 20 | 49.197 | 12500T |
| 6063A-T4 | 324 | 310 | 7 | 18.822 | 12500T |
| 6063-F | 333 | 318 | 7.5 | 20.707 | 7500T |
| 6063-T5 | 347 | 317 | 15 | 42.242 | 9000T |
| 6063-T5 | 360 | 348 | 6 | 18.016 | 9000T |
| 6063-T6 | 367 | 302 | 32.5 | 92.213 | 12500T |
| 6061-F | 370 | 354 | 8 | 24.565 | 9000T |
| 6063-T5 | 372 | 352 | 10 | 30.706 | 12500T |
| 6063A-T4 | 394 | 380 | 7 | 22.979 | 12500T |
| 6061-T6511 | 397 | 356 | 20.5 | 67.729 | 12500T |
| 6063-T5 | 399 | 386 | 6.5 | 21.640 | 12500T |
| 6063-T5 | 400 | 386 | 7 | 23.335 | 12500T |
| 6063 | 402 | 380 | 11 | 36.482 | 12500T |
| 6061-T6/T651 | 411 | 351 | 30 | 96.953 | 22500T |
| 6101 | 450 | 436 | 7 | 26.304 | 9000T |
| 6101B-T6 | 450 | 430 | 10 | 37.322 | 12500T |
Click to see all
