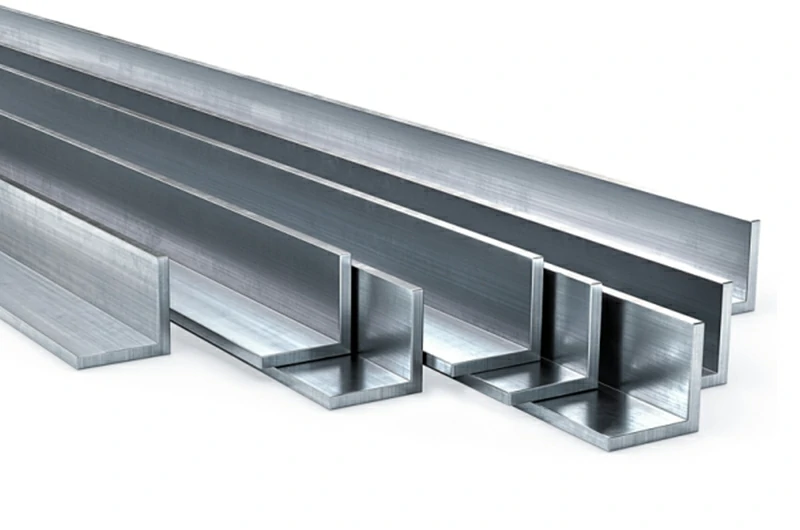

Angle aluminum, also known as alu angle bar, alum angle, aluminium angle trim.It is an aluminum profile with a cross-sectional area in the shape of the letter "L", consisting of two legs intersecting at 90 degrees. The lengths of the two legs can be equal or unequal, providing stability and rigidity in various applications.
Common sizes of aluminium angle
-
1/2" x 1" x 1/16" Thick aluminum Angle
-
1/2" x 3/4" x 1/16" Thick aluminum Angle
-
2" x 2" x 1/8" Thick aluminum Angle
-
1" x 1" x 1/8" Thick aluminum Angle
-
1" x 1" x 3/16" Thick aluminum Angle
-
1-1/4" x 1-1/4" x 1/16" Thick aluminum Angle
-
1-1/4" x 1-1/4" x 1/8" Thick aluminum Angle
-
3/4" x 1-1/4" x 1/16" Thick aluminum Angle
-
1" x 1" x 1/16" Thick aluminum Angle
-
3/4" x 3/4" x 1/8" Thick aluminum Angle
-
2" x 2" x 1/16" Thick aluminum Angle
-
2" x 2" x 3/16" Thick aluminum Angle
-
3/4" x 3/4" x 1/16" Thick aluminum Angle
-
1/2" x 1/2" x 1/16" Thick aluminum Angle
-
1/2" x 1/2" x 1/8" Thick aluminum Angle
-
1-1/2" x 1-1/2" x 1/16" Thick aluminum Angle
-
1-1/2" x 1-1/2" x 3/16" Thick aluminum Angle
-
1-1/2" x 1-1/2" x 1/8" Thick aluminum Angle
Popular size chart for aluminium angle
| Product | A | B | Thickness |
| 6061-T6511 Aluminum Angle 3" x 3" x 1/4" | 3" | 3" | 1/4" |
| 6061-T6511 Aluminum Angle 2" x 2" x 1/8" | 2" | 2" | 1/8" |
| 6061-T6 Aluminum Angle 1-1/2" x 1-1/2" x 1/4" | 1-1/2" | 1-1/2" | 1/4" |
| 6061-T6 Aluminum Angle 1/2" x 1/2" x 1/8" | 1/2" | 1/2" | 1/8" |
| 6061-T6 Aluminum Angle 3/4" x 3/4" x 1/8" | 3/4" | 3/4" | 1/8" |
| 6061-T6 Aluminum Angle 1" x 1" x 0.065" | 1" | 1" | 0.065" |
| 6061-T6 Aluminum Angle 1" x 1" x 1/8" | 1" | 1" | 1/8" |
| 6061-T6 Aluminum Angle 1" x 1" x 0.188" | 1" | 1" | 0.188" |
| 6061-T6 Aluminum Angle 1" x 1" x 1/4" | 1" | 1" | 1/4" |
| 6061-T6 Aluminum Angle 1-1/4" x 1-1/4" x 1/8" | 1-1/4" | 1-1/4" | 1/8" |
| 6061-T6 Aluminum Angle 1.25" x 1.25" x 0.188" | 1.25" | 1.25" | 0.188" |
| 6061-T6 Aluminum Angle 1-1/4" x 1-1/4" x 1/4" | 1-1/4" | 1-1/4" | 1/4" |
| 6061-T6 Aluminum Angle 1-1/2" x 3/4" x 1/8" | 1-1/2" | 3/4" | 1/8" |
| 6061-T6 Aluminum Angle 1-1/2" x 1" x 1/8" | 1-1/2" | 1" | 1/8" |
| 6061-T6 Aluminum Angle 1-1/2" x 1-1/2" x 1/8" | 1-1/2" | 1-1/2" | 1/8" |
| 6061-T6 Aluminum Angle 1-1/2" x 1-1/2" x 0.188" | 1-1/2" | 1-1/2" | 0.188" |
| 6061-T6 Aluminum Angle 1-1/2" x 1-1/2" x 1/4" | 1-1/2" | 1-1/2" | 1/4" |
| 6061-T6 Aluminum Angle 1-3/4" x 1-3/4" x 1/8" | 1-3/4" | 1-3/4" | 1/8" |
| 6061-T6 Aluminum Angle 1.75" x 1.75" x 0.188" | 1.75" | 1.75" | 0.188" |
| 6061-T6 Aluminum Angle 1-3/4" x 1-3/4" x 1/4" | 1-3/4" | 1-3/4" | 1/4" |
| 6061-T6 Aluminum Angle 2" x 1" x 1/8" | 2" | 1" | 1/8" |
| 6061-T6 Aluminum Angle 2" x 1-1/2" x 1/8" | 2" | 1-1/2" | 1/8" |
| 6061-T6 Aluminum Angle 2" x 1.5" x 0.188" | 2" | 1.5" | 0.188" |
| 6061-T6 Aluminum Angle 2" x 1-1/2" x 1/4" | 2" | 1-1/2" | 1/4" |
| 6061-T6 Aluminum Angle 2" x 2" x 1/8" | 2" | 2" | 1/8" |
| 6061-T6 Aluminum Angle 2" x 2" x 0.188" | 2" | 2" | 0.188" |
| 6061-T6 Aluminum Angle 2" x 2" x 1/4" | 2" | 2" | 1/4" |
| 6061-T6 Aluminum Angle 2" x 2" x 3/8" | 2" | 2" | 3/8" |
| 6061-T6 Aluminum Angle 2-1/2" x 1-1/2" x 1/8" | 2-1/2" | 1-1/2" | 1/8" |
| 6061-T6 Aluminum Angle 2-1/2" x 1-1/2" x 0.188" | 2-1/2" | 1-1/2" | 0.188" |
| 6061-T6 Aluminum Angle 2-1/2" x 1-1/2" x 1/4" | 2-1/2" | 1-1/2" | 1/4" |
| 6061-T6 Aluminum Angle 2-1/2" x 2" x 0.188" | 2-1/2" | 2" | 0.188" |
| 6063-T5 Aluminum Angle 2" x 2" x 1/16" | 2" | 2" | 1/16" |
| 6063-T5 Aluminum Angle 1-1/2" x 1-1/2" x 1/16" | 1-1/2" | 1-1/2" | 1/16" |
| 6063-T5 Aluminum Angle 3/4" x 3/4" x 1/16" | 3/4" | 3/4" | 1/16" |
| 6063-T5 Aluminum Angle 1/2" x 1/2" x 1/16" | 1/2" | 1/2" | 1/16" |
| 6063-T5 Aluminum Angle 1" x 1" x 1/16" | 1" | 1" | 1/16" |
| 6063-T5 Aluminum Angle 3/4" x 3/4" x 1/16" | 3/4" | 3/4" | 1/16" |
| 6063-T5 Aluminum Angle 1" x 1" x 1/20" | 1" | 1" | 1/20" |
| 6063-T5 Aluminum Angle 1-1/2" x 1-1/2" x 1/8" | 1-1/2" | 1-1/2" | 1/8" |
| 6063-T5 Aluminum Angle 1-1/4" x 1-1/4" x 1/8" | 1-1/4" | 1-1/4" | 1/8" |
| 6063-T5 Aluminum Angle 2" x 2" x 1/8" | 2" | 2" | 1/8" |
| 6063-T5 Aluminum Angle 3/4" x 3/4" x 1/8" | 3/4" | 3/4" | 1/8" |
| 6063-T5 Aluminum Angle 1" x 1" x 1/8" | 1" | 1" | 1/8" |
| 6063-T5 Aluminum Angle 3/4" x 3/4" x 1/8" | 3/4" | 3/4" | 1/8" |
| 6063-T5 Aluminum Angle 3" x 3" x 1/4" | 3" | 3" | 1/4" |
| 6063-T52 Aluminum Angle 1/2" x 1/2" x 1/16" | 1/2" | 1/2" | 1/16" |
| 6063-T52 Aluminum Angle 1/2" x 1/2" x 1/8" | 1/2" | 1/2" | 1/8" |
| 6063-T52 Aluminum Angle 5/8" x 5/8" x 1/8" | 5/8" | 5/8" | 1/8" |
| 6063-T52 Aluminum Angle 3/4" x 3/4" x 1/16" | 3/4" | 3/4" | 1/16" |
| 6063-T52 Aluminum Angle 3/4" x 3/4" x 1/8" | 3/4" | 3/4" | 1/8" |
| 6063-T52 Aluminum Angle 1" x 1/2" x 1/8" | 1" | 1/2" | 1/8" |
| 6063-T52 Aluminum Angle 1" x 3/4" x 1/8" | 1" | 3/4" | 1/8" |
| 6063-T52 Aluminum Angle 1" x 1" x 1/16" | 1" | 1" | 1/16" |
| 6063-T52 Aluminum Angle 1" x 1" x 1/8" | 1" | 1" | 1/8" |
| 6063-T52 Aluminum Angle 1" x 1" x 3/16" | 1" | 1" | 3/16" |
| 6063-T52 Aluminum Angle 1-1/4" x 1/2" x 1/8" | 1-1/4" | 1/2" | 1/8" |
| 6063-T52 Aluminum Angle 1-1/4" x 1-1/4" x 1/8" | 1-1/4" | 1-1/4" | 1/8" |
| 6063-T52 Aluminum Angle 1-1/4" x 1-1/4" x 3/16" | 1-1/4" | 1-1/4" | 3/16" |
| 6063-T52 Aluminum Angle 1/2" x 3/4" x 1/8" | 1/2" | 3/4" | 1/8" |
| 6063-T52 Aluminum Angle 1-1/2" x 1" x 1/8" | 1-1/2" | 1" | 1/8" |
| 6063-T52 Aluminum Angle 1-1/2" x 1-1/2" x 1/8" | 1-1/2" | 1-1/2" | 1/8" |
| 6063-T52 Aluminum Angle 1-1/2" x 1-1/2" x 3/16" | 1-1/2" | 1-1/2" | 3/16" |
| 6063-T52 Aluminum Angle 1-1/2" x 1-1/2" x 1/4" | 1-1/2" | 1-1/2" | 1/4" |
| 6063-T52 Aluminum Angle 1-3/4" x 1-3/4" x 1/8" | 1-3/4" | 1-3/4" | 1/8" |
| 6063-T52 Aluminum Angle 2" x 1" x 1/8" | 2" | 1" | 1/8" |
| 6063-T52 Aluminum Angle 2" x 1" x 3/16" | 2" | 1" | 3/16" |
| 6063-T52 Aluminum Angle 2" x 1-1/2" x 1/8" | 2" | 1-1/2" | 1/8" |
| 6063-T52 Aluminum Angle 2" x 1-1/2" x 3/16" | 2" | 1-1/2" | 3/16" |
| 6063-T52 Aluminum Angle 2" x 2" x 1/4" | 2" | 2" | 1/4" |
| 6063-T52 Aluminum Angle 2-1/2" x 1-1/2" x 1/8" | 2-1/2" | 1-1/2" | 1/8" |
| 6063-T52 Aluminum Angle 3" x 1" x 1/8" | 3" | 1" | 1/8" |
| 6063-T52 Aluminum Angle 3" x 2" x 1/8" | 3" | 2" | 1/8" |
| 6063-T52 Aluminum Angle 3" x 2" x 1/4" | 3" | 2" | 1/4" |
| 6063-T52 Aluminum Angle 3" x 3" x 1/8" | 3" | 3" | 1/8" |
| 6063-T52 Aluminum Angle 3" x 3" x 3/16" | 3" | 3" | 3/16" |
| 6063-T52 Aluminum Angle 3" x 3" x 1/4" | 3" | 3" | 1/4" |
| 6063-T52 Aluminum Angle 4" x 2" x 1/8" | 4" | 2" | 1/8" |
| 6063-T52 Aluminum Angle 4" x 2" x 1/4" | 4" | 2" | 1/4" |
| 5083-H111 Aluminum Angle 4" x 4" x 1/4" | 4" | 4" | 1/4" |
| 5083-H111 Aluminum Angle 1" x 1" x 1/8" | 1" | 1" | 1/8" |
| 5083-H111 Aluminum Angle 1" x 1" x 0.188" | 1" | 1" | 0.188" |
| 5083-H111 Aluminum Angle 1" x 1" x 1/4" | 1" | 1" | 1/4" |
| 5083-H111 Aluminum Angle 1-1/4" x 1-1/4" x 1/8" | 1-1/4" | 1-1/4" | 1/8" |
| 5083-H111 Aluminum Angle 1-1/2" x 1-1/2" x 0.188" | 1-1/2" | 1-1/2" | 0.188" |
| 5083-H111 Aluminum Angle 1-1/2" x 1-1/2" x 1/4" | 1-1/2" | 1-1/2" | 1/4" |
| 5083-H111 Aluminum Angle 1-3/4" x 1-3/4" x 1/4" | 1-3/4" | 1-3/4" | 1/4" |
| 5083-H111 Aluminum Angle 2" x 2" x 1/8" | 2" | 2" | 1/8" |
| 5083-H111 Aluminum Angle 2" x 2" x 0.188" | 2" | 2" | 0.188" |
| 5083-H111 Aluminum Angle 2" x 2" x 1/4" | 2" | 2" | 1/4" |
| 5083-H111 Aluminum Angle 2" x 1-1/2" x 1/4" | 2" | 1-1/2" | 1/4" |
| 5083-H111 Aluminum Angle 2-1/2" x 2-1/2" x 0.188" | 2-1/2" | 2-1/2" | 0.188" |
| 5083-H111 Aluminum Angle 2-1/2" x 2-1/2" x 1/4" | 2-1/2" | 2-1/2" | 1/4" |
| 5083-H111 Aluminum Angle 2-1/2" x 2" x 1/4" | 2-1/2" | 2" | 1/4" |
| 5083-H111 Aluminum Angle 3" x 3" x 0.188" | 3" | 3" | 0.188" |
| 5083-H111 Aluminum Angle 3" x 3" x 1/4" | 3" | 3" | 1/4" |
| 5083-H111 Aluminum Angle 3" x 3" x 0.313" | 3" | 3" | 0.313" |
| 5083-H111 Aluminum Angle 3" x 3" x 3/8" | 3" | 3" | 3/8" |
| 5083-H111 Aluminum Angle 3" x 3" x 1/2" | 3" | 3" | 1/2" |
| 5083-H111 Aluminum Angle 3" x 2" x 0.188" | 3" | 2" | 0.188" |
| 5083-H111 Aluminum Angle 3" x 2" x 1/4" | 3" | 2" | 1/4" |
| 5083-H111 Aluminum Angle 3-1/2" x 3-1/2" x 1/4" | 3-1/2" | 3-1/2" | 1/4" |
| 5083-H111 Aluminum Angle 3-1/2" x 2-1/2" x 1/4" | 3-1/2" | 2-1/2" | 1/4" |
| 5083-H111 Aluminum Angle 4" x 3" x 1/4" | 4" | 3" | 1/4" |
| 5083-H111 Aluminum Angle 4" x 3" x 3/8" | 4" | 3" | 3/8" |
| 5083-H111 Aluminum Angle 5" x 3" x 1/4" | 5" | 3" | 1/4" |
| 5083-H111 Aluminum Angle 6" x 3-1/2" x 3/8" | 6" | 3-1/2" | 3/8" |
| 5083-H111 Aluminum Angle 6" x 4" x 3/8" | 6" | 4" | 3/8" |
| 5083-H111 Aluminum Angle 8" x 6" x 3/8" | 8" | 6" | 3/8" |
| 5052-H32 Aluminum Angle 1" x 1" x 0.4" | 1" | 1" | 0.4" |
| 5052-H32 Aluminum Angle 2" x 2" x 0.4" | 2" | 2" | 0.4" |
| 5086-H111 Aluminum Angle 1-1/4" x 1-1/2" x 1/4" | 1-1/4" | 1-1/2" | 1/4" |
| 5086-H111 Aluminum Angle 1" x 1" x 1/4" | 1" | 1" | 1/4" |
| 5086-H111 Aluminum Angle 1-1/2" x 1-1/2" x 1/4" | 1-1/2" | 1-1/2" | 1/4" |
| 5086-H111 Aluminum Angle 1" x 1" x 1/8" | 1" | 1" | 1/8" |
| 5086-H111 Aluminum Angle 2" x 1-3/4" x 1/8" | 2" | 1-3/4" | 1/8" |
| 5086-H111 Aluminum Angle 3" x 2-3/4" x 1/8" | 3" | 2-3/4" | 1/8" |
| 5086-H111 Aluminum Angle 4" x 3-3/4" x 1/8" | 4" | 3-3/4" | 1/8" |
| 7075-T6 Aluminum Angle 2" x 2" x 1/4" | 2" | 2" | 1/4" |
| 7075-T6 Aluminum Angle 2" x 2" x 1/16" | 2" | 2" | 1/16" |
| 7075-T6 Aluminum Angle 2" x 2" x 1/8" | 2" | 2" | 1/8" |
Click to see all
Click to collapseSpecifications of aluminium angle bar
| Alloy | 5052,5083,5086,6061,6063,7075 |
| Temper | T5,T52,T6,T6511,H111 |
| Specification | GB/T 6892,ASTM B221,EN754,EN 755 |
| Surface | Anodized, Powder coated, Mill finish |
| Thickness | 2mm-15mm |
| A,B | 10mm-200mm |
| Length | 10mm-6000mm |
| Machining | Cutting, punching, drilling, bending, welding, mill, CNC etc. |
| Guarantee | Surface color can be stable for 10-20 years indoor using |
Characteristics of aluminum L extrusion
- Weldability: The high thermal conductivity and low melting point of aluminum facilitate strong welding joints and complex shapes.
- Corrosion resistance: Aluminum's corrosion resistance is attributed to the formation of an aluminum oxide protective layer. It is highly suitable for corrosive environments such as marine and industrial environments.
- Aesthetic appeal: Aluminum angle bars enhance appearance and durability with their consistent silver surface and options like powder coating, polishing, and anodizing. For instance, powder coating provides a smooth, chip-resistant surface.
Common types of Alu Angle
-
Aluminum angle black anodized
-
Matt black aluminium angle
-
White aluminum angle
-
Anthracite grey aluminium angle trim
-
Aluminium angle powder coated
-
Bronze anodized aluminum angle
The mechanical properties of alu angle bar
| Alloy-Temper | Tensile Strength | Elongation | Shear Strength |
| 6060-T6 | 170Mpa | 11% | 130Mpa |
| 6063-T6 | 210Mpa | 11% | 152Mpa |
| 6082-T6 | 250Mpa | 10% | 220Mpa |
Applications of aluminium angle bar
Building Structures: Aluminium angle bars are commonly used in building structures, such as for door and window frames, roof and wall support structures, etc. Their lightweight, corrosion resistance, and high strength make them an ideal choice for building materials.
Automotive Manufacturing: In automotive manufacturing, aluminium angle bars are used for vehicle body structures, chassis components, and interior decoration. Aluminium products are lighter than steel, helping to reduce vehicle weight, improve fuel efficiency, and reduce emissions.
Aerospace: Due to their lightweight and good strength, aluminium angle bars are widely used in the aerospace industry, such as for aircraft fuselage structures, engine components, and cabin equipment brackets.
Decoration and Home Furnishing: Aluminium angle bars are also commonly used in decoration and home furnishing, such as for door and window frames, furniture brackets, and decorative materials, due to their aesthetic appearance, durability, and ease of processing.
Industrial Equipment: In the manufacturing of industrial equipment, aluminium angle bars can be used to make conveyor belt brackets, mechanical structures, and workbench components, to meet the needs of different applications..
Price of aluminum extrusion
The price of angle aluminum is affected by a variety of factors, including the cost of aluminum, specifications and dimensions, processing technology, market demand and delivery location. With the fluctuation of the global aluminum market and changes in market supply and demand, the price of angle aluminum will also fluctuate accordingly.
We are a professional manufacturer and supplier of angle aluminum. We ship directly from the manufacturer and the price is very competitive. If you need specific prices, please contact us.
