Corrugated aluminum pipes are durable conduits used in stormwater drainage and infrastructure. They're known for their resilience in harsh weather and resistance to corrosion.
Specifications of corrugated aluminum pipe
| Common Alloys | 3003 3004 |
| Length | Up to 50ft or Customized |
| Diameter | 6”-120” |
| Wall Thickness | 18, 16, 14, 12, 10 and 8 gauge or Customized |
| Color | Black, Silver, or Customized |
| Shape | Circular or Arched |
| Packaging | Wooden Box or Customized |
| Processing | Cutting, Punching |
Hot-selling sizes of Mastar corrugated aluminum pipes
| Product | OD(inch) | Wall(gauge) | Wall(inch) |
| 6"OD corrugated aluminum pipe | 6" | 16ga | 0.051" |
| 12"OD corrugated aluminum pipe | 12" | 16ga | 0.051" |
| 12"OD perforated aluminum corrugated pipe | 12" | 16ga | 0.051" |
| 15"OD corrugated aluminum pipe | 15" | 16ga | 0.051" |
| 15"OD perforated aluminum corrugated pipe | 15" | 16ga | 0.051" |
| 18"OD corrugated aluminum pipe | 18" | 16ga | 0.051" |
| 24"OD corrugated aluminum pipe | 24" | 16ga | 0.051" |
| 24"OD perforated aluminum corrugated pipe | 24" | 16ga | 0.051" |
| 30"OD corrugated aluminum pipe | 30" | 16ga | 0.051" |
| 36"OD corrugated aluminum pipe | 36" | 16ga | 0.051" |
| 42"OD corrugated aluminum pipe | 42" | 16ga | 0.051" |
| 48"OD corrugated aluminum pipe | 48" | 16ga | 0.051" |
| 60"OD corrugated aluminum pipe | 60" | 16ga | 0.051" |
| 72"OD corrugated aluminum pipe | 72" | 16ga | 0.051" |
| 6"OD corrugated aluminum pipe | 6" | 14ga | 0.064" |
| 12"OD corrugated aluminum pipe | 12" | 14ga | 0.064" |
| 15"OD corrugated aluminum pipe | 15" | 14ga | 0.064" |
| 15"OD corrugated aluminum pipe | 15" | 14ga | 0.064" |
| 18"OD corrugated aluminum pipe | 18" | 14ga | 0.064" |
| 24"OD corrugated aluminum pipe | 24" | 14ga | 0.064" |
| 30"OD corrugated aluminum pipe | 30" | 14ga | 0.064" |
| 36"OD corrugated aluminum pipe | 36" | 14ga | 0.064" |
| 42"OD corrugated aluminum pipe | 42" | 14ga | 0.064" |
| 48"OD corrugated aluminum pipe | 48" | 14ga | 0.064" |
| 60"OD corrugated aluminum pipe | 60" | 14ga | 0.064" |
| 72"OD corrugated aluminum pipe | 72" | 14ga | 0.064" |
| 6"OD corrugated aluminum pipe | 6" | 12ga | 0.081" |
| 12"OD corrugated aluminum pipe | 12" | 12ga | 0.081" |
| 15"OD corrugated aluminum pipe | 15" | 12ga | 0.081" |
| 15"OD corrugated aluminum pipe | 15" | 12ga | 0.081" |
| 18"OD corrugated aluminum pipe | 18" | 12ga | 0.081" |
| 24"OD corrugated aluminum pipe | 24" | 12ga | 0.081" |
| 30"OD corrugated aluminum pipe | 30" | 12ga | 0.081" |
| 36"OD corrugated aluminum pipe | 36" | 12ga | 0.081" |
| 42"OD corrugated aluminum pipe | 42" | 12ga | 0.081" |
| 48"OD corrugated aluminum pipe | 48" | 12ga | 0.081" |
| 60"OD corrugated aluminum pipe | 60" | 12ga | 0.081" |
| 72"OD corrugated aluminum pipe | 72" | 12ga | 0.081" |
Types and applications of corrugated aluminum pipe

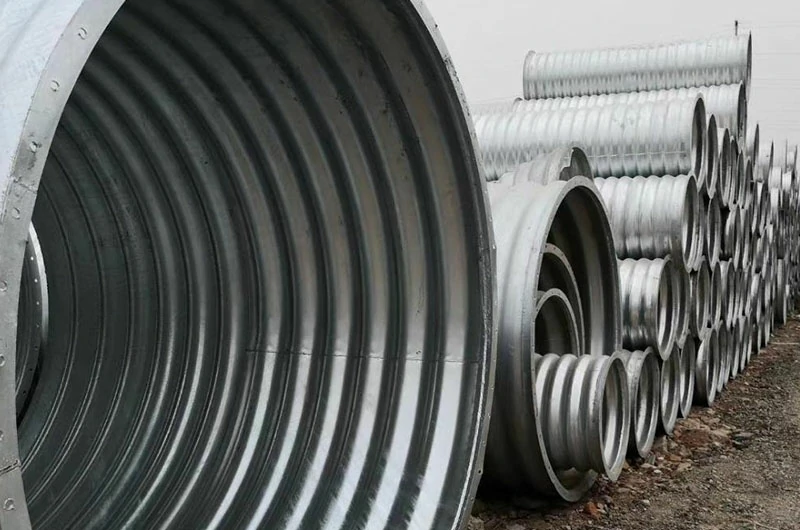

Circular corrugated aluminum pipes- The most common corrugated aluminum pipes, commonly using alloys 3003 and 3004, known for their strong corrosion resistance. Mainly used in drainage facilities such as rivers, culverts, and sewers.
Arched corrugated aluminum pipes- Mainly used for arched passages at the bottom of bridges, effectively protecting the bridges.
Aluminum-coated corrugated metal pipes- Diameter: 12”- 48”
- Wall thickness:12 gauge or 14 gauge
- The surface of the corrugated steel pipe is coated with aluminum, blending steel strength with aluminum's corrosion resistance. It's widely used in drainage systems with a lifespan of up to 75 years.
Perforated corrugated aluminum pipe- Perforated corrugated aluminum pipes are widely used for drainage ditches, covert structures, gas collection, wells, and dry wells. They're also employed in water retention/supply systems, allowing collected rainwater to seep underground.

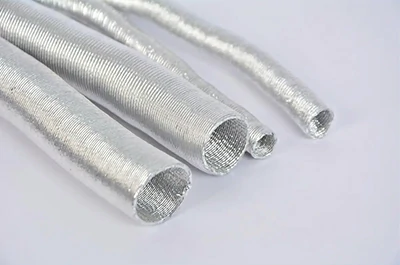

Aluminum foil corrugated pipe- Common alloys: 1060, 1100, 3003
- It is typically composed of three layers: inner and outer layers of aluminum foil with a fiberglass layer in between. It can bend up to 180 degrees and withstand temperatures of up to 550°C.
- Widely used for ventilation, dust removal, smoke exhaust, heat dissipation, gas transportation, and cable protection.
Characteristics of corrugated aluminum pipe
Lightweight and strong: aluminum is lightweight yet strong. Corrugation further boosts its strength, allowing it to handle higher pressure with less weight.
Flexibility: the corrugated design makes bending and adjusting easier, adapting well to complex installation environments without damage.
Corrosion resistance: aluminum naturally resists corrosion, maintaining performance and appearance even in damp or chemically harsh conditions.
Heat dissipation: corrugation increases surface area, enhancing heat dissipation efficiency, ideal for cooling systems in electronics and air conditioning.
